Step to UEFI (30) ---- UEFI 下SMBIOS的读取

有朋友提出一个问题:UEFI 下如何读取SMBIOS信息?

smbiosq

查阅了一下资料,在 EFI_CONFIGURATION_TABLE 中有 SMBIOS_TABLE_GUID 可以用来获得SMBIOS信息。此外,推荐看一下 http://blog.chinaunix.net/uid-20757375-id-3531318.html 。

可供直接参考的代码有 ShellPkg\Library\UefiShellDebug1CommandsLib\SmbiosView 如果你看着觉得过于复杂的话,还可以参考 https://github.com/fpmurphy/UEFI-Utilities 。这个程序结构清晰,功能简单。每种不足是直接下载的代码有一些错误之类的,需要修正。下面就是修改之后的代码(代码很多是从EDK中直接copy出来的,因为装一些头文件和调用会很复杂,用到的只是那么一两个函数,所以最简单的就是直接copy,放在代码中了.其中头文件 smbios.h 可以在\MdePkg\Include\IndustryStandard 中找到)

//
//  Copyright (c) 2012  Finnbarr P. Murphy.   All rights reserved.
//
//  Display  Firmware Information Vendor, Version and Release Date via SMBIOS
//
//  Any source code included from EDK2 is copyright Intel Corporation
//
//  Licence: BSD License
//


#define GUID EFI_GUID     // hack for SmBios.h
#include "IndustryStandard/SmBios.h"       // from EDK2. GNU_EFI libsmbios.h is defective
#include <Library/UefiLib.h>
#include <Library/ShellCEntryLib.h>
#include <Library/MemoryAllocationLib.h>

#define EFI_GLOBAL_VARIABLE \
  { \
    0x8BE4DF61, 0x93CA, 0x11d2, {0xAA, 0x0D, 0x00, 0xE0, 0x98, 0x03, 0x2B, 0x8C } \
  }

#define EFI_SMBIOS_TABLE_GUID \
  { \
    0xeb9d2d31, 0x2d88, 0x11d3, {0x9a, 0x16, 0x0, 0x90, 0x27, 0x3f, 0xc1, 0x4d} \
  }

#define BUFSIZE 64

#define INVALID_HANDLE  (UINT16) (-1)
#define DMI_INVALID_HANDLE  0x83
#define DMI_SUCCESS 0x00

STATIC SMBIOS_TABLE_ENTRY_POINT *mSmbiosTable = 0; //NULL;
STATIC SMBIOS_STRUCTURE_POINTER m_SmbiosStruct;
STATIC SMBIOS_STRUCTURE_POINTER *mSmbiosStruct = &m_SmbiosStruct;

EFI_GUID  SMBIOSTableGuid = EFI_SMBIOS_TABLE_GUID;

extern EFI_SYSTEM_TABLE			 *gST;

int
Strlen(const char *str)
{
    const char *s;

    for (s = str; *s; ++s)
        ;
    return (s - str);
}


//
// Modified from EDK2 source code.  Copyright Intel Corporation.
//
CHAR8*
LibGetSmbiosString ( SMBIOS_STRUCTURE_POINTER *Smbios,
                     UINT16 StringNumber)
{
    UINT16  Index;
    CHAR8   *String;

    //ASSERT (Smbios != NULL);

    String = (CHAR8 *) (Smbios->Raw + Smbios->Hdr->Length);

    for (Index = 1; Index <= StringNumber; Index++) {
        if (StringNumber == Index) {
            return String;
        }
        for (; *String != 0; String++)
             ;
        String++;

        if (*String == 0) {
            Smbios->Raw = (UINT8 *)++String;
            return NULL;
        }
    }

    return NULL;
}


//
// Modified from EDK2 source code. Copyright Intel Corporation.
//
EFI_STATUS
LibGetSmbiosStructure ( UINT16 *Handle,
                        UINT8  **Buffer,
                        UINT16 *Length)
{
     SMBIOS_STRUCTURE_POINTER  Smbios;
     SMBIOS_STRUCTURE_POINTER  SmbiosEnd;
     UINT8 *Raw;

     if (*Handle == INVALID_HANDLE) {
          *Handle =  mSmbiosStruct->Hdr->Handle;
          return DMI_INVALID_HANDLE;
     }

     if ((Buffer == NULL) || (Length == NULL)) {
          Print(L"Invalid handle\n");
          return DMI_INVALID_HANDLE;
     }

     *Length = 0;
     Smbios.Hdr = mSmbiosStruct->Hdr;
     SmbiosEnd.Raw = Smbios.Raw + mSmbiosTable->TableLength;
     while (Smbios.Raw < SmbiosEnd.Raw) {
          if (Smbios.Hdr->Handle == *Handle) {
             Raw = Smbios.Raw;
             LibGetSmbiosString (&Smbios, (UINT16) (-1));
             *Length = (UINT16) (Smbios.Raw - Raw);
             *Buffer = Raw;
             if (Smbios.Raw < SmbiosEnd.Raw) {
                  *Handle = Smbios.Hdr->Handle;
             } else {
                  *Handle = INVALID_HANDLE;
             }
             return DMI_SUCCESS;
         }
         LibGetSmbiosString (&Smbios, (UINT16) (-1));
    }

    *Handle = INVALID_HANDLE;

    return DMI_INVALID_HANDLE;
}


CHAR16 *
ASCII_to_UCS2(const char *s, int len)
{
    CHAR16 *ret = NULL;
    int i;

    ret = AllocateZeroPool(len*2 + 2);
    if (!ret)
        return NULL;

    for (i = 0; i < len; i++)
        ret[i] = s[i];

    return ret;
}

BOOLEAN
EfiCompareGuid (
  IN EFI_GUID *Guid1,
  IN EFI_GUID *Guid2
  )
/*++

Routine Description:

  Compares two GUIDs

Arguments:

  Guid1 - guid to compare

  Guid2 - guid to compare

Returns:
  TRUE     if Guid1 == Guid2
  FALSE    if Guid1 != Guid2

--*/
{
  UINTN Index;

  //
  // compare byte by byte
  //
  for (Index = 0; Index < 16; ++Index) {
    if (*(((UINT8*) Guid1) + Index) != *(((UINT8*) Guid2) + Index)) {
      return FALSE;
    }
  }
  return TRUE;
}


EFI_STATUS
EfiLibGetSystemConfigurationTable (
  IN EFI_GUID *TableGuid,
  OUT VOID **Table
  )
/*++

Routine Description:

  Get table from configuration table by name

Arguments:

  TableGuid       - Table name to search

  Table           - Pointer to the table caller wants

Returns:

  EFI_NOT_FOUND   - Not found the table

  EFI_SUCCESS     - Found the table

--*/
{
  UINTN Index;

  *Table = NULL;
  for (Index = 0; Index < gST->NumberOfTableEntries; Index++) {
    if (EfiCompareGuid (TableGuid, &(gST->ConfigurationTable[Index].VendorGuid))==TRUE) {
      *Table = gST->ConfigurationTable[Index].VendorTable;
      return EFI_SUCCESS;
    }
  }

  return EFI_NOT_FOUND;
}

/**
  Compares two memory buffers of a given length.

  @param  DestinationBuffer The first memory buffer.
  @param  SourceBuffer      The second memory buffer.
  @param  Length            Length of DestinationBuffer and SourceBuffer memory
                            regions to compare. Must be non-zero.

  @return 0                 All Length bytes of the two buffers are identical.
  @retval Non-zero          The first mismatched byte in SourceBuffer subtracted from the first
                            mismatched byte in DestinationBuffer.

**/
INTN
EFIAPI
InternalMemCompareMemZ (
  IN      CONST VOID                *DestinationBuffer,
  IN      CONST VOID                *SourceBuffer,
  IN      UINTN                     Length
  )
{
  while ((--Length != 0) &&
         (*(INT8*)DestinationBuffer == *(INT8*)SourceBuffer)) {
    DestinationBuffer = (INT8*)DestinationBuffer + 1;
    SourceBuffer = (INT8*)SourceBuffer + 1;
  }
  return (INTN)*(UINT8*)DestinationBuffer - (INTN)*(UINT8*)SourceBuffer;
}

/**
  Compares the contents of two buffers.

  This function compares Length bytes of SourceBuffer to Length bytes of DestinationBuffer.
  If all Length bytes of the two buffers are identical, then 0 is returned.  Otherwise, the
  value returned is the first mismatched byte in SourceBuffer subtracted from the first
  mismatched byte in DestinationBuffer.

  If Length > 0 and DestinationBuffer is NULL, then ASSERT().
  If Length > 0 and SourceBuffer is NULL, then ASSERT().
  If Length is greater than (MAX_ADDRESS - DestinationBuffer + 1), then ASSERT().
  If Length is greater than (MAX_ADDRESS - SourceBuffer + 1), then ASSERT().

  @param  DestinationBuffer A pointer to the destination buffer to compare.
  @param  SourceBuffer      A pointer to the source buffer to compare.
  @param  Length            The number of bytes to compare.

  @return 0                 All Length bytes of the two buffers are identical.
  @retval Non-zero          The first mismatched byte in SourceBuffer subtracted from the first
                            mismatched byte in DestinationBuffer.

**/
INTN
EFIAPI
CompareMem (
  IN CONST VOID  *DestinationBuffer,
  IN CONST VOID  *SourceBuffer,
  IN UINTN       Length
  )
{
  if (Length == 0 || DestinationBuffer == SourceBuffer) {
    return 0;
  }

  return InternalMemCompareMemZ (DestinationBuffer, SourceBuffer, Length);
}


EFI_STATUS
UefiMain (EFI_HANDLE image, EFI_SYSTEM_TABLE *systab)
{
    EFI_STATUS status = EFI_SUCCESS;
    CHAR16 *ptr;
    CHAR8  *str;
    UINT16  Handle;
    UINTN   Index;
    UINT16  Length;
    UINT8   *Buffer;
    SMBIOS_STRUCTURE_POINTER SmbiosStruct;

    //InitializeLib(image, systab);

    status = EfiLibGetSystemConfigurationTable(&SMBIOSTableGuid, (VOID**)&mSmbiosTable);
    if ((status != EFI_SUCCESS || mSmbiosTable == NULL) ||
        (CompareMem (mSmbiosTable->AnchorString, "_SM_", 4) != 0)) {
        Print(L"ERROR: SMBIOS table not found.\n");
        return status;
    }

    mSmbiosStruct->Raw  = (UINT8 *) (UINTN) (mSmbiosTable->TableAddress);

    Print(L"SMBIOS Ver: %x.%x  Rev: %x  Table Count: %d\n",
            mSmbiosTable->MajorVersion,
            mSmbiosTable->MinorVersion,
            mSmbiosTable->EntryPointRevision,
            mSmbiosTable->NumberOfSmbiosStructures);

    Handle  = INVALID_HANDLE;
    LibGetSmbiosStructure (&Handle, NULL, NULL);

    // loop though the tables looking for a type 0 table.
    for (Index = 0; Index < mSmbiosTable->NumberOfSmbiosStructures; Index++) {
        if (Handle == INVALID_HANDLE) {
            break;
        }
        if (LibGetSmbiosStructure (&Handle, &Buffer, &Length) != DMI_SUCCESS) {
            break;
        }
        SmbiosStruct.Raw = Buffer;
        if (SmbiosStruct.Hdr->Type == 0) {     // Type 0 - BIOS

             /* vendor string */
             str = LibGetSmbiosString(&SmbiosStruct, 1);
             ptr = ASCII_to_UCS2(str, Strlen(str));
             Print(L"Firmware Vendor: %s\n", ptr);
             FreePool(ptr);

             /* version string */
             str = LibGetSmbiosString(&SmbiosStruct, 2);
             ptr = ASCII_to_UCS2(str, Strlen(str));
             Print(L"Firmware Version: %s\n", ptr);
             FreePool(ptr);

             /* release string */
             str = LibGetSmbiosString(&SmbiosStruct, 3);
             ptr = ASCII_to_UCS2(str, Strlen(str));
             Print(L"Firmware Release: %s\n", ptr);
             FreePool(ptr);

             break;
        }
    }

    return status;
}

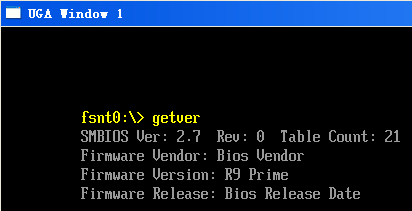

运行结果

smbios

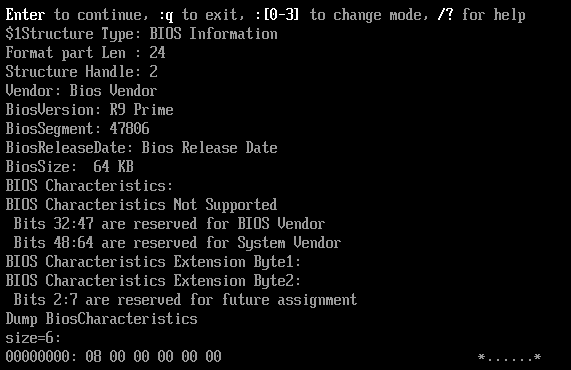

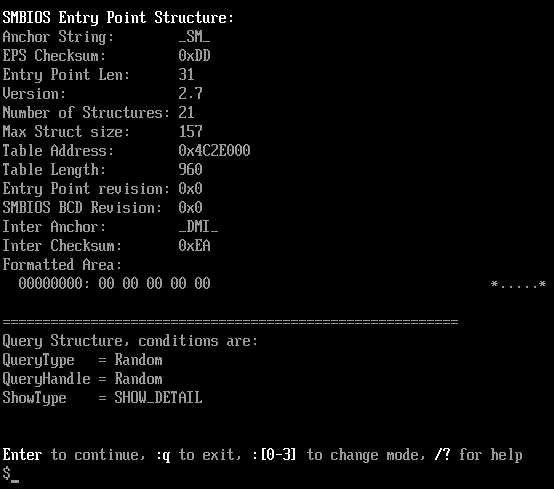

对比 SMBIOSVIEW

smbiosview

smbiosview2

可以看到二者是相同的。

代码下载
GetVer

顺便多说一点:

SMBIOS中可以获得一些硬件信息,比如当前的内存插槽信息等等。但是,因为这个是BIOS在POST过程中加入的,很可能出现错误,甚至就是忘记做这个东西(MS的软件非常不信任BIOS提供的信息,如果有可能他们宁可自己重新获取一下)。如果只是想做个参考,并且你的软件需要兼容大量的设备,从这里获得信息是完全没问题的(比如MemTest86);但是如果你期望准确一些,最好还是自己手工做一下。另外一方面,如果你使用了从SMBIOS获得信息的方法,结果在客户现场遇到了问题,不妨考虑一下是否为 SMBIOS 不正确导致的。
