Step to UEFI (115)zLib 的压缩功能

有朋友留言我才想起来很早之前介绍过 zLib 的编译,但是没有编写一个完整的例子。这次补上这一块。

首先需要安装好zLib(现在都是在 UDK2015下面进行编译),我在 AppPkg.dsc 中加入下面的语句:

  CacheMaintenanceLib|MdePkg/Library/BaseCacheMaintenanceLib/BaseCacheMaintenanceLib.inf

  UefiHandleParsingLib|ShellPkg/Library/UefiHandleParsingLib/UefiHandleParsingLib.inf

  zLib|AppPkg/Applications/zsource/zlib.inf
###################################################################################################
#
# Components Section - list of the modules and components that will be processed by compilation
#                      tools and the EDK II tools to generate PE32/PE32+/Coff image files.



之后就可以直接使用了。
压缩很简单,用下面这个函数即可

int compress (Bytef *dest,   uLongf *destLen, const Bytef *source, uLong sourceLen);



特别需要注意的是,压缩是在内存中进行的,所以需要开辟一段用来存放压缩结果的空间,这个空间的大小也就是上面的destLen。因此,在运行这个函数之前最好线运行一下预测压缩之后大小的函数:

 uLong compressBound (uLong sourceLen);



压缩之后的结果不会超过这个函数返回值(一般情况下要小得多)

压缩很简单,下面介绍解压缩:

int uncompress (Bytef *dest,   uLongf *destLen,const Bytef *source, uLong sourceLen);



和压缩函数非常类似,但是有一点特别注意的:这个函数用到的 destLen 是解压之后的大小,但是zLib没有提供预测解压之后大小的函数。据说原因是因为解压缩是压缩的“反函数”,因此,在压缩的时候应该已经知道解压后的大小。具体在使用的时候需要想办法自己定义结构体之类的将原始大小传递给解压函数以便开辟内存空间。譬如,在存放压缩的buffer前面加上4字节的大小之类的。

基本概念了解完就上代码,例子实现的功能是将 zlibtest.efi 压缩为test.lbz。然后再解压保存为 test.efi。

#include  <Uefi.h>
#include  <Library/UefiLib.h>
#include  <Library/ShellCEntryLib.h>
#include <Library/MemoryAllocationLib.h>

#include  <stdio.h>
#include  <stdlib.h>
#include  <wchar.h>

#include <Library/ShellLib.h>

#include  "zlib.h"

extern EFI_BOOT_SERVICES         *gBS;
extern EFI_SYSTEM_TABLE			 *gST;
extern EFI_RUNTIME_SERVICES 	 *gRT;

int
EFIAPI
main (
  IN int Argc,
  IN CHAR16 **Argv
  )
{
	EFI_FILE_HANDLE   FileHandle;
	RETURN_STATUS     Status;
	EFI_FILE_INFO     *FileInfo = NULL;
	UINT32  			SourceSize;
	UINT32  			preSize;
	CHAR8  *source=NULL;
	CHAR8  *dest=NULL;
//Read a source file
	//Open the file given by the parameter
	Status =
		ShellOpenFileByName(
				L"zlibtest.efi",
				(SHELL_FILE_HANDLE *)&FileHandle,
                EFI_FILE_MODE_READ ,
				0);
	if(Status != RETURN_SUCCESS) {
        Print(L"OpenFile failed!\n");
		return EFI_SUCCESS;
      }

	//Get file size
	FileInfo =
		ShellGetFileInfo((SHELL_FILE_HANDLE)FileHandle);

	//Allocate a memory buffer
	source =
		AllocateZeroPool((UINTN) FileInfo-> FileSize);
	if (source == NULL) {
	  Print(L"Allocate source memory error!\n");
      return (SHELL_OUT_OF_RESOURCES);
	}

	SourceSize = (UINT32) (FileInfo-> FileSize & 0xFFFFFFFF);

	//Load the whole file to the buffer
	Status = ShellReadFile(FileHandle,&SourceSize,source);
	if (EFI_ERROR(Status)) {
		Print(L"Read file error [%r]\n",Status);
		ShellCloseFile(&FileHandle);
		return (EFI_SUCCESS);
	}
	ShellCloseFile(&FileHandle);
//Compress
	preSize = compressBound((UINT32)SourceSize);
	Print(L"Source file size   : %d\n",SourceSize);
	Print(L"Compress Bound Size: %d\n",preSize);

	dest = AllocateZeroPool(preSize);
	if (dest == NULL) {
	  Print(L"Allocate dest memory error!\n");
      return (SHELL_OUT_OF_RESOURCES);
	}

	//Output
	Print(L"Compressing.........\n");
	Status=compress(dest,&preSize,source,SourceSize);
	if (Status != Z_OK) {
	  Print(L"Compress error!\n");
      return (SHELL_OUT_OF_RESOURCES);
	}
	Print(L"Compressing complete!\n");
	Print(L"Compressed size: %d\n",preSize);

//Save compressed result to a file
	//Create a new file
	Status = ShellOpenFileByName(L"test.lbz",
                            (SHELL_FILE_HANDLE *)&FileHandle,
                            EFI_FILE_MODE_READ |
	 					    EFI_FILE_MODE_WRITE|
							EFI_FILE_MODE_CREATE,
							0);
	if(Status != RETURN_SUCCESS) {
			Print(L"CreatFile failed [%r]!\n",Status);
			return EFI_SUCCESS;
	}

	Status = ShellWriteFile(FileHandle,
					&preSize,
					dest
				);

	//Close the source file
	ShellCloseFile(&FileHandle);

//This program is just a demo for showing how to use zlib.
//Uncompress test
	Status=uncompress(source,&SourceSize,dest,preSize);
	if (Status != Z_OK) {
	  Print(L"Decompress error!\n");
      return (SHELL_OUT_OF_RESOURCES);
	}

	//Output
	Print(L"decompress Size: %d\n",SourceSize);

	//Create a new file
	Status = ShellOpenFileByName(L"test.efi",
                            (SHELL_FILE_HANDLE *)&FileHandle,
                            EFI_FILE_MODE_READ |
	 					    EFI_FILE_MODE_WRITE|
							EFI_FILE_MODE_CREATE,
							0);
	if(Status != RETURN_SUCCESS) {
			Print(L"CreatFile failed [%r]!\n",Status);
			return EFI_SUCCESS;
	}

	Status = ShellWriteFile(FileHandle,
					&SourceSize,
					source
				);

	//Close the source file
	ShellCloseFile(&FileHandle);

	FreePool(dest);
	FreePool(source);
  return EFI_SUCCESS;
}

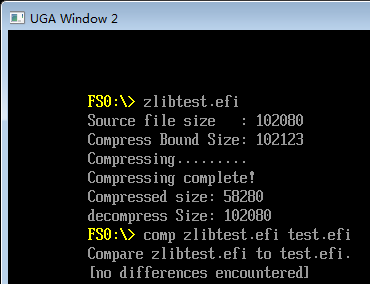

运行结果:

zlib1

我们直接比较压缩前和解压后的结果,是相同的。

完整的代码下载:

zlibtest

参考:
1. http://www.cppblog.com/woaidongmao/archive/2009/09/07/95495.html zlib用法简单说明

Step to UEFI (107)取得USB DISK 的序列号

继续前面的话题,这次研究如何取得一个USB DISK的信息。最先想到的还是使用 DISK INFO PROTOCOL,不过到了实际编写代码的时候发现:我根本不知道返回值是什么格式。在代码中搜索了几次 gEfiDiskInfoUsbInterfaceGuid 发现无人使用。之后为了弄清楚格式,直接创建了一个256bytes大小的内存,还是用 identify 来获得返回值,最后发现:返回值是空的。因此,也就是说虽然 USB DISK上有安装这个 protocol,但是根本就是一个空的而已。
再调整思路,首先用 DISK INFO PROTOCOL取得USB DISK 的 Handle ,然后,在这个Handle上打开 USBIO,EFI_USB_IO_PROTOCOL.UsbGetStringDescriptor 可以用来取得描述符中相关的字符串【参考1】,具体结构可以在 \EdkCompatibilityPkg\Foundation\Include\IndustryStandard\usb.h 找到:

typedef struct {
  UINT8           Length;
  UINT8           DescriptorType;
  UINT16          BcdUSB;
  UINT8           DeviceClass;
  UINT8           DeviceSubClass;
  UINT8           DeviceProtocol;
  UINT8           MaxPacketSize0;
  UINT16          IdVendor;
  UINT16          IdProduct;
  UINT16          BcdDevice;
  UINT8           StrManufacturer;
  UINT8           StrProduct;
  UINT8           StrSerialNumber;
  UINT8           NumConfigurations;
} EFI_USB_DEVICE_DESCRIPTOR;



最后,用这个 函数来取得需要的字符串。

完整的代码:

#include  <Uefi.h>
#include  <Library/UefiLib.h>
#include  <Library/ShellCEntryLib.h>
#include  <Library/ShellCEntryLib.h>
#include  <Protocol/DiskInfo.h>
#include  <Library/BaseMemoryLib.h>
#include  <Protocol/IdeControllerInit.h>
#include <Library/MemoryAllocationLib.h>
#include  <Protocol/UsbIo.h>

extern EFI_BOOT_SERVICES         *gBS;
extern EFI_HANDLE				 gImageHandle;

EFI_GUID gEfiDiskInfoProtocolGuid = { 0xD432A67F, 0x14DC, 0x484B,
					{ 0xB3, 0xBB, 0x3F, 0x02, 0x91, 0x84, 0x93, 0x27 }};
EFI_GUID gEfiDiskInfoUsbInterfaceGuid   = { 0xCB871572, 0xC11A, 0x47B5,
					{ 0xB4, 0x92, 0x67, 0x5E, 0xAF, 0xA7, 0x77, 0x27 }};

EFI_GUID  gEfiUsbIoProtocolGuid   = { 0x2B2F68D6, 0x0CD2, 0x44CF,
					{ 0x8E, 0x8B, 0xBB, 0xA2, 0x0B, 0x1B, 0x5B, 0x75 }};

int
EFIAPI
main (
  IN int Argc,
  IN CHAR16 **Argv
  )
{
    EFI_STATUS 	Status;
    UINTN 		HandleIndex, NumHandles;
    EFI_HANDLE 	*ControllerHandle = NULL;
	EFI_DISK_INFO_PROTOCOL	*DiskInfoProtocol;
	EFI_USB_IO_PROTOCOL 			*USBIO;
	EFI_USB_DEVICE_DESCRIPTOR     DeviceDescriptor;
	CHAR16                       *Manufacturer;
	CHAR16                       *Product;
	CHAR16                       *SerialNumber;

    Status = gBS->LocateHandleBuffer(
            ByProtocol,
            &gEfiDiskInfoProtocolGuid,
            NULL,
            &NumHandles,
            &ControllerHandle);

    for (HandleIndex = 0; HandleIndex < NumHandles; HandleIndex++) {
        Status = gBS->OpenProtocol(
                ControllerHandle[HandleIndex],
                &gEfiDiskInfoProtocolGuid,
                (VOID**)&DiskInfoProtocol,
                gImageHandle,
                NULL,
                EFI_OPEN_PROTOCOL_GET_PROTOCOL
                );
        if (EFI_ERROR(Status)) {
            continue;
        }

		//We only deal with USB
		if (!(CompareGuid (
				&DiskInfoProtocol->Interface,
				&gEfiDiskInfoUsbInterfaceGuid))) {
				continue;
			}

        Status = gBS->OpenProtocol(
                ControllerHandle[HandleIndex],
                &gEfiUsbIoProtocolGuid,
                (VOID**)&USBIO,
                gImageHandle,
                NULL,
                EFI_OPEN_PROTOCOL_GET_PROTOCOL
                );
        if (EFI_ERROR(Status)) {
			Print(L"ERROR : Open USBIO fail.\n");
            continue;
        }

		Status = USBIO->UsbGetDeviceDescriptor
							(USBIO, &DeviceDescriptor);
		if (EFI_ERROR(Status))
		{
			Print(L"ERROR : Get Device Descriptor fail.\n");
			return 0;
		}

		Print(L"VendorID = %04X\nProductID = %04X\n",
                              DeviceDescriptor.IdVendor,
                              DeviceDescriptor.IdProduct);

		Status = USBIO->UsbGetStringDescriptor (
                    USBIO,
                    0x0409, 			// English
                    DeviceDescriptor.StrManufacturer,
                    &Manufacturer
                    );
		if (EFI_ERROR (Status)) {
				Manufacturer = L"";
		}

		Status = USBIO->UsbGetStringDescriptor (
                    USBIO,
                    0x0409, 			// English
                    DeviceDescriptor.StrProduct,
                    &Product
                    );
		if (EFI_ERROR (Status)) {
				Product = L"";	}


		Status = USBIO->UsbGetStringDescriptor (
                    USBIO,
                    0x0409, 			// English
                    DeviceDescriptor.StrSerialNumber,
                    &SerialNumber
                    );
		if (EFI_ERROR (Status)) {
				SerialNumber = L"";}

		Print(L"     Manufacturer :  %s\n",Manufacturer);
		Print(L"     Product      :  %s\n",Product);
		Print(L"     Serial Number:  %s\n",SerialNumber);


	}
  return EFI_SUCCESS;
}



运行结果:
ditu1

完整的代码和程序下载:
diskinfousb

另外,还可以直接枚举 USBIO 然后检查对应的 Class发现是USB MASS Storage 即是U盘,然后再重复上面取得字符串信息的动作。

参考:
1. UEFI Spec 2.4 P835 EFI_USB_IO_PROTOCOL.UsbGetStringDescriptor()

Step to UEFI (106)取得AHCI SATA 的序列号

继续前面的话题,现在尝试直接输出AHCI HDD 的信息。资料上标明AHCI和IDE HDD输出的信息格式是相同的,所以这里会一同处理。

原理上:找到 DISK INFO PROTOCOL 后,判断 GUID 是否为 IDE和 AHCI 的,如果是,那么用Identify 来取得型号信息。返回构体EFI_ATAPI_IDENTIFY_DATA,具体定义在下面这个文件中:

\EdkCompatibilityPkg\Foundation\Framework\Protocol\IdeControllerInit\IdeControllerInit.h 中。

typedef struct {
    UINT16  config;             // General Configuration
    UINT16  obsolete_1;
    UINT16  specific_config;
    UINT16  obsolete_3;
    UINT16  retired_4_5[2];
    UINT16  obsolete_6;
    UINT16  cfa_reserved_7_8[2];
    UINT16  retired_9;
    CHAR8   SerialNo[20];       // ASCII
    UINT16  retired_20_21[2];
    UINT16  obsolete_22;
    CHAR8   FirmwareVer[8];     // ASCII
    CHAR8   ModelName[40];      // ASCII
    UINT16  multi_sector_cmd_max_sct_cnt;
    UINT16  reserved_48;
    UINT16  capabilities_49;
    UINT16  capabilities_50;
    UINT16  obsolete_51_52[2];
    UINT16  field_validity;
    UINT16  obsolete_54_58[5];
    UINT16  mutil_sector_setting;
    UINT16  user_addressable_sectors_lo;
    UINT16  user_addressable_sectors_hi;
    UINT16  obsolete_62;
    UINT16  multi_word_dma_mode;
    UINT16  advanced_pio_modes;
    UINT16  min_multi_word_dma_cycle_time;
    UINT16  rec_multi_word_dma_cycle_time;
    UINT16  min_pio_cycle_time_without_flow_control;
    UINT16  min_pio_cycle_time_with_flow_control;
    UINT16  reserved_69_74[6];
    UINT16  queue_depth;
    UINT16  reserved_76_79[4];
    UINT16  major_version_no;
    UINT16  minor_version_no;
    UINT16  cmd_set_support_82;
    UINT16  cmd_set_support_83;
    UINT16  cmd_feature_support;
    UINT16  cmd_feature_enable_85;
    UINT16  cmd_feature_enable_86;
    UINT16  cmd_feature_default;
    UINT16  ultra_dma_select;
    UINT16  time_required_for_sec_erase;
    UINT16  time_required_for_enhanced_sec_erase;
    UINT16  current_advanced_power_mgmt_value;
    UINT16  master_pwd_revison_code;
    UINT16  hardware_reset_result;
    UINT16  current_auto_acoustic_mgmt_value;
    UINT16  reserved_95_99[5];
    UINT16  max_user_lba_for_48bit_addr[4];
    UINT16  reserved_104_126[23];
    UINT16  removable_media_status_notification_support;
    UINT16  security_status;
    UINT16  vendor_data_129_159[31];
    UINT16  cfa_power_mode;
    UINT16  cfa_reserved_161_175[15];
    UINT16  current_media_serial_no[30];
    UINT16  reserved_206_254[49];
    UINT16  integrity_word;
} EFI_ATAPI_IDENTIFY_DATA;



代码如下:

#include  <Uefi.h>
#include  <Library/UefiLib.h>
#include  <Library/ShellCEntryLib.h>
#include  <Library/ShellCEntryLib.h>
#include  <Protocol/DiskInfo.h>
#include  <Library/BaseMemoryLib.h>
#include  <Protocol/IdeControllerInit.h>

extern EFI_BOOT_SERVICES         *gBS;

extern EFI_HANDLE				 gImageHandle;

EFI_GUID gEfiDiskInfoProtocolGuid = { 0xD432A67F, 0x14DC, 0x484B,
					{ 0xB3, 0xBB, 0x3F, 0x02, 0x91, 0x84, 0x93, 0x27 }};
EFI_GUID gEfiDiskInfoAhciInterfaceGuid  = { 0x9e498932, 0x4abc, 0x45af,
					{ 0xa3, 0x4d, 0x02, 0x47, 0x78, 0x7b, 0xe7, 0xc6 }};
EFI_GUID gEfiDiskInfoIdeInterfaceGuid   = { 0x5E948FE3, 0x26D3, 0x42B5,
					{ 0xAF, 0x17, 0x61, 0x02, 0x87, 0x18, 0x8D, 0xEC }};

int
EFIAPI
main (
  IN int Argc,
  IN CHAR16 **Argv
  )
{
    EFI_STATUS Status;
    UINTN HandleIndex, NumHandles;
    EFI_HANDLE *ControllerHandle = NULL;
	EFI_DISK_INFO_PROTOCOL	*DiskInfoProtocol;
	UINT32                       BufferSize;
    EFI_ATAPI_IDENTIFY_DATA      IdentifyData;
	UINT32				i;

    Status = gBS->LocateHandleBuffer(
            ByProtocol,
            &gEfiDiskInfoProtocolGuid,
            NULL,
            &NumHandles,
            &ControllerHandle);

    for (HandleIndex = 0; HandleIndex < NumHandles; HandleIndex++) {
        Status = gBS->OpenProtocol(
                ControllerHandle[HandleIndex],
                &gEfiDiskInfoProtocolGuid,
                (VOID**)&DiskInfoProtocol,
                gImageHandle,
                NULL,
                EFI_OPEN_PROTOCOL_GET_PROTOCOL
                );
        if (EFI_ERROR(Status)) {
            continue;
        }

		//We only deal with AHCI and IDE
		if (!(CompareGuid (
				&DiskInfoProtocol->Interface,
				&gEfiDiskInfoAhciInterfaceGuid)||
			(CompareGuid (
				&DiskInfoProtocol->Interface,
			    &gEfiDiskInfoIdeInterfaceGuid)
			))) {
				continue;
			}

		BufferSize   = sizeof (EFI_ATAPI_IDENTIFY_DATA);
		Status = DiskInfoProtocol->Identify (
                         DiskInfoProtocol,
                         &IdentifyData,
                         &BufferSize
                         );

		Print(L"Model Name :");
		for (i=0;i<40;i=i+2) {
			Print(L"%c%c",
				IdentifyData.ModelName[i+1],
				IdentifyData.ModelName[i]);
		}
		Print(L"\n");
	}

  return EFI_SUCCESS;
}



在 KabyLake HDK 板子上运行上述代码,结果如下:
ahci1

细心的朋友可能注意到,输出并不是直接输出序列号,而是有一个顺序上的调整:
Print(L"%c%c", IdentifyData.ModelName[i+1], IdentifyData.ModelName[i]);
原因是,刚开始我试验的是直接顺序输出,但是发现结果是下面这样的:
ahci2

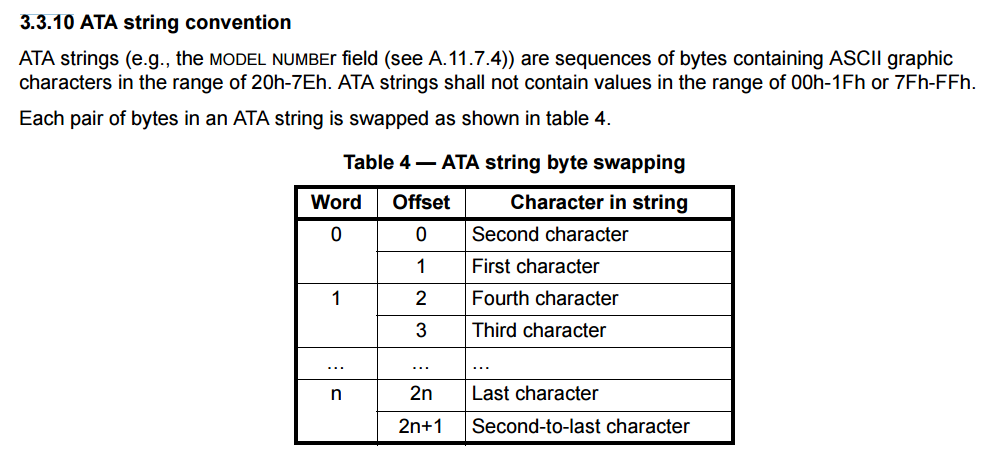

开始以为是 CHAR 对 CHAR16转换上的问题,后来查阅资料【参考1】,发现这里的行医比较特别。排列是 2/1/4/3/6/5……. 这样的:
ahci3

所以,修改代码手工做一次反转就可以了。
完整的代码下载:
diskinfoahci

参考:
1. http://www.t13.org/Documents/UploadedDocuments/docs2013/d2161r5-ATAATAPI_Command_Set_-_3.pdf

Step to UEFI (105)DiskinfoProtocol

这次介绍一下用来取得系统上硬盘信息的 Protocol: EFI_DISK_INFO_PROTOCOL。

在\MdePkg\Include\Protocol\DiskInfo.h 有他的原型:

///
/// Forward declaration for EFI_DISK_INFO_PROTOCOL
///
typedef struct _EFI_DISK_INFO_PROTOCOL  EFI_DISK_INFO_PROTOCOL;
///
/// The EFI_DISK_INFO_PROTOCOL provides controller specific information.
///
struct _EFI_DISK_INFO_PROTOCOL {
  ///
  /// A GUID that defines the format of buffers for the other member functions
  /// of this protocol.
  ///
  EFI_GUID                  Interface;
  ///
  /// Return the results of the Inquiry command to a drive in InquiryData. Data
  /// format of Inquiry data is defined by the Interface GUID.
  ///
  EFI_DISK_INFO_INQUIRY     Inquiry;
  ///
  /// Return the results of the Identify command to a drive in IdentifyData. Data
  /// format of Identify data is defined by the Interface GUID.
  ///
  EFI_DISK_INFO_IDENTIFY    Identify;
  ///
  /// Return the results of the Request Sense command to a drive in SenseData. Data
  /// format of Sense data is defined by the Interface GUID.
  ///
  EFI_DISK_INFO_SENSE_DATA  SenseData;
  ///
  /// Specific controller.
  ///
  EFI_DISK_INFO_WHICH_IDE   WhichIde;
};



更详细的介绍可以在 PI Specification 1.4 上找到。
对于不同类型的设备,比如 IDE 和 USB ,返回的数据格式是不同的。枚举到这个 PROTOCOL 之后需要检查EFI_GUID Interface 通过不同的GUID得知当前设备的类型。
下面先编写一个简单的 Demo,检查 GUID ,判断当前设备的类型:

#include  <Uefi.h>
#include  <Library/UefiLib.h>
#include  <Library/ShellCEntryLib.h>
#include  <Library/ShellCEntryLib.h>
#include  <Protocol/DiskInfo.h>
#include  <Library/BaseMemoryLib.h>

extern EFI_BOOT_SERVICES         *gBS;

extern EFI_HANDLE				 gImageHandle;

EFI_GUID gEfiDiskInfoProtocolGuid = { 0xD432A67F, 0x14DC, 0x484B,
					{ 0xB3, 0xBB, 0x3F, 0x02, 0x91, 0x84, 0x93, 0x27 }};

EFI_GUID gEfiDiskInfoIdeInterfaceGuid   = { 0x5E948FE3, 0x26D3, 0x42B5,
					{ 0xAF, 0x17, 0x61, 0x02, 0x87, 0x18, 0x8D, 0xEC }};
EFI_GUID gEfiDiskInfoScsiInterfaceGuid  = { 0x08F74BAA, 0xEA36, 0x41D9,
					{ 0x95, 0x21, 0x21, 0xA7, 0x0F, 0x87, 0x80, 0xBC }};
EFI_GUID gEfiDiskInfoUsbInterfaceGuid   = { 0xCB871572, 0xC11A, 0x47B5,
					{ 0xB4, 0x92, 0x67, 0x5E, 0xAF, 0xA7, 0x77, 0x27 }};
EFI_GUID gEfiDiskInfoAhciInterfaceGuid  = { 0x9e498932, 0x4abc, 0x45af,
					{ 0xa3, 0x4d, 0x02, 0x47, 0x78, 0x7b, 0xe7, 0xc6 }};
EFI_GUID gEfiDiskInfoNvmeInterfaceGuid  = { 0x3ab14680, 0x5d3f, 0x4a4d,
					{ 0xbc, 0xdc, 0xcc, 0x38, 0x0, 0x18, 0xc7, 0xf7 }};
EFI_GUID gEfiDiskInfoUfsInterfaceGuid   = { 0x4b3029cc, 0x6b98, 0x47fb,
					{ 0xbc, 0x96, 0x76, 0xdc, 0xb8, 0x4, 0x41, 0xf0 }};
int
EFIAPI
main (
  IN int Argc,
  IN CHAR16 **Argv
  )
{
    EFI_STATUS Status;
    UINTN HandleIndex, NumHandles;
    EFI_HANDLE *ControllerHandle = NULL;
	EFI_DISK_INFO_PROTOCOL	*DiskInfoProtocol;

    Status = gBS->LocateHandleBuffer(
            ByProtocol,
            &gEfiDiskInfoProtocolGuid,
            NULL,
            &NumHandles,
            &ControllerHandle);

    for (HandleIndex = 0; HandleIndex < NumHandles; HandleIndex++) {
        Status = gBS->OpenProtocol(
                ControllerHandle[HandleIndex],
                &gEfiDiskInfoProtocolGuid,
                (VOID**)&DiskInfoProtocol,
                gImageHandle,
                NULL,
                EFI_OPEN_PROTOCOL_GET_PROTOCOL
                );
        if (EFI_ERROR(Status)) {
            continue;
        }

		Print(L"Device[%d] GUID: %g",
				HandleIndex,
				DiskInfoProtocol->Interface);
		if (CompareGuid (
				&DiskInfoProtocol->Interface,
			&gEfiDiskInfoIdeInterfaceGuid)) {
				Print(L" IDE HDD\n");
			}
		if (CompareGuid (
				&DiskInfoProtocol->Interface,
			&gEfiDiskInfoScsiInterfaceGuid)) {
				Print(L" Scsi HDD\n");
			}
		if (CompareGuid (
				&DiskInfoProtocol->Interface,
			&gEfiDiskInfoUsbInterfaceGuid)) {
				Print(L" USB HDD\n");
			}
		if (CompareGuid (
				&DiskInfoProtocol->Interface,
			&gEfiDiskInfoAhciInterfaceGuid)) {
				Print(L" AHCI HDD\n");
			}
		if (CompareGuid (
				&DiskInfoProtocol->Interface,
			&gEfiDiskInfoNvmeInterfaceGuid)) {
				Print(L" NVME HDD\n");
			}
		if (CompareGuid (
				&DiskInfoProtocol->Interface,
			&gEfiDiskInfoUfsInterfaceGuid)) {
				Print(L" Ufs HDD\n");
			}
	}

  return EFI_SUCCESS;
}



上述代码在UDK2014中编译通过,但是无法在 NT32环境下运行。于是在实体机KabyLake HDK 上实验, 板子上挂载了一个 SATA HDD 一个eMMC和两个USB Disk。运行结果如下:

dit

可以看出,当前的SATA 是AHCI 模式。此外, eMMC 设备是无法被识别出来的,也许后面会扩展到这种设备吧。
完整的代码下载:

diskinfotest

Step to UEFI Tips :介绍 BaseMemoryLib

最近在写代码时,需要用到一些关于 GUID 处理的函数。偶然间看到了 BaseMemoryLib.h 中有一些,顺便整理了一下这个库提供的函数。完整的头文件在 \MdePkg\Include\Library\BaseMemoryLib.h .



CopyMem   内存拷贝函数

SetMem       用8Bit来进行内存填充

SetMem16用 16Bit来进行内存填充

SetMem32用 32Bit来进行内存填充

SetMem64用 64Bit来进行内存填充

SetMemN  用 UINTN 来进行内存填充(UINTN在IA32下和 X64下大小不同)

ZeroMem  对指定内存清零

CompareMem  比较内存函数

ScanMem8   在内存中搜索一个 8Bit的指定值

ScanMem16   在内存中搜索一个 16Bit的指定值

ScanMem32   在内存中搜索一个 32Bit的指定值

ScanMem64   在内存中搜索一个 64Bit的指定值

ScanMemN     在内存中搜索UINTN大小的指定值

CopyGuid       复制一个 GUID 到另外一个 GUID中

CompareGuid  比较2个 GUID

ScanGuid         在内存中搜索一个给定的 GUID

IsZeroGuid       检查一个 GUID是否为0

IsZeroBuffer     检查一段内存是否为为全0







Step to UEFI (104)eMMC in the Shell

eMMC 应用在平板电脑上已经有一段时间了,本文给出了一个取得 eMMC CID 的例子。当然,你在其他资料上还会发现一些类似 MMC_INFO 之类的Protocol,但是根据我的实验,目前大多数系统只支持SD HOST IO 这一个 Protocol。此外,强烈建议一定在实体机上进行实验,避免出现费了很大力气编写代码,但是实际上第一步就无法完成的问题。
原理介绍:首先查找系统中的 SD_HOST_IO 的Protocol .目前看起来系统中只有一个这样的 Protocol ,所以我们用 LocateProtocol 就足够了。取得之后,通过这个 Protocol,对 eMMC 发送command。这个做法和 ATA 设备的 PassThrough Protocol很像。下面的代码是取得CID信息的,CID是用来识别eMMC一些基本信息的寄存器,比如 Serial Number,具体定义在 eMMC Specification中可以找到【参考1】 。

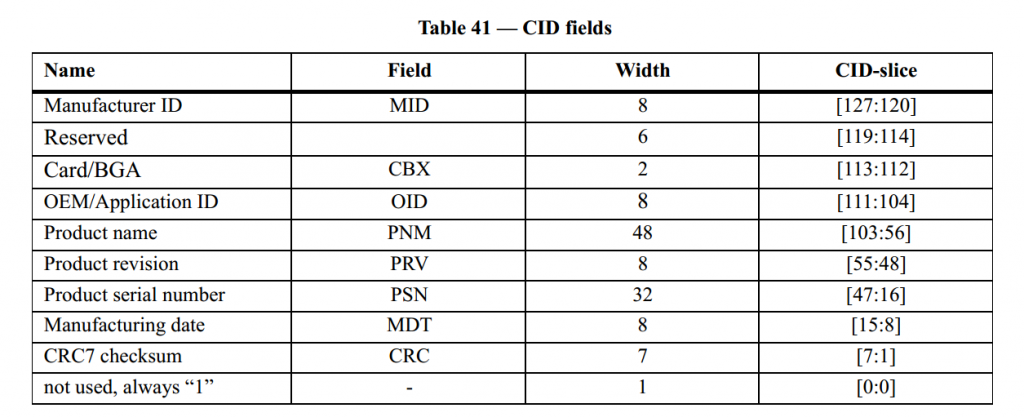

“8.2 CID register
The Card IDentification (CID) register is 128 bits wide. It contains the card identification information used during the card identification phase (MultiMediaCard protocol). Every individual flash or I/O card shall have an unique identification number. Every type of MultiMediaCard ROM cards (defined by content) shall have an unique identification number. Table 41 on page 112 lists these identifiers.The structure of the CID register is defined in the following sections”

代码:

#include  <Uefi.h>
#include  <Library/UefiLib.h>
#include  <Library/ShellCEntryLib.h>
#include <Library/MemoryAllocationLib.h>
#include  <Protocol/BlockIo.h>

#include "SDHostIo.h"
#include "mmc.h"


EFI_GUID gEfiSdHostIoProtocolGuid = { 0xb63f8ec7, 0xa9c9, 0x4472,
					{0xa4, 0xc0, 0x4d, 0x8b, 0xf3, 0x65, 0xcc, 0x51}};

//
// Command timeout will be max 100 ms
//
#define  TIMEOUT_COMMAND     100

extern EFI_BOOT_SERVICES         *gBS;

EFI_STATUS
SendCommand (
  IN   EFI_SD_HOST_IO_PROTOCOL    *This,
  IN   UINT16                     CommandIndex,
  IN   UINT32                     Argument,
  IN   TRANSFER_TYPE              DataType,
  IN   UINT8                      *Buffer, OPTIONAL
  IN   UINT32                     BufferSize,
  IN   RESPONSE_TYPE              ResponseType,
  IN   UINT32                     TimeOut,
  OUT  UINT32                     *ResponseData
  )
/*++

  Routine Description:
    Send command by using Host IO protocol

  Arguments:
    This           - Pointer to EFI_SD_HOST_IO_PROTOCOL
    CommandIndex   - The command index to set the command index field of command register
    Argument       - Command argument to set the argument field of command register
    DataType       - TRANSFER_TYPE, indicates no data, data in or data out
    Buffer         - Contains the data read from / write to the device
    BufferSize     - The size of the buffer
    ResponseType   - RESPONSE_TYPE
    TimeOut        - Time out value in 1 ms unit
    ResponseData   - Depending on the ResponseType, such as CSD or card status

  Returns:
    EFI_INVALID_PARAMETER
    EFI_UNSUPPORTED
    EFI_DEVICE_ERROR
    EFI_SUCCESS
 --*/
{

  EFI_STATUS    Status;

  Status = This->SendCommand (
           This,
           CommandIndex,
           Argument,
           DataType,
           Buffer,
           BufferSize,
           ResponseType,
           TimeOut,
           ResponseData
           );
  if (!EFI_ERROR (Status)) {
    if (ResponseType == ResponseR1 || ResponseType == ResponseR1b) {
      //ASSERT(ResponseData != NULL);
	  Print(L"Error with code [%d]",(*ResponseData));
    }
  } else {
    This->ResetSdHost (This, Reset_DAT_CMD);
  }

  return Status;
}

int
EFIAPI
main (
  IN UINT32 Argc,
  IN CHAR16 **Argv
  )
{
	EFI_SD_HOST_IO_PROTOCOL   *SdHostIo;
	EFI_STATUS 		Status;
	CID             CIDReg;
    OCR             OCRReg;
	UINT32          TimeOut=5000;

	Status = gBS->LocateProtocol (
                  &gEfiSdHostIoProtocolGuid,
                  NULL,
                  &SdHostIo
                  );
	if (EFI_ERROR (Status)) {
		Print(L"No SdHost driver, Application is exiting!\n");
		return Status;
	}

    SdHostIo->EnableAutoStopCmd (SdHostIo, TRUE);
    SdHostIo->SetupDevice (SdHostIo);

    //
    // Go to Idle
    //
	SendCommand (
                SdHostIo,
                GO_IDLE_STATE,
                0,
                NoData,
                NULL,
                0,
                ResponseNo,
                TIMEOUT_COMMAND,
                NULL
            );

    gBS->Stall (100 * 1000);

    //
    // Check voltage support, first time we use 0x40FF8080
    //
    SendCommand (
                SdHostIo,
				SEND_OP_COND,
                0x40FF8080,
                NoData,
                NULL,
                0,
                ResponseR3,
                TIMEOUT_COMMAND,
                (UINT32*)&(OCRReg)
            );

    while (OCRReg.Busy != 1) {
		OCRReg.AccessMode = 0x02; // sector mode;
		SendCommand (
				  SdHostIo,
                  SEND_OP_COND,
                  *(UINT32*)&(OCRReg),
                  NoData,
                  NULL,
                  0,
                  ResponseR3,
                  TIMEOUT_COMMAND,
                  (UINT32*)&(OCRReg)
                  );

        gBS->Stall(100);

        TimeOut--;
        if (TimeOut == 0) {
            Print(L"Card is always busy\n");
            Status = EFI_TIMEOUT;
            goto Exit;
        }
    }

	SendCommand(
          SdHostIo,
          ALL_SEND_CID,
		0,
          NoData,
          NULL,
          0,
          ResponseR2,
          TIMEOUT_COMMAND,
          (UINT32*)&(CIDReg)
          );

    Print (L" Product serial number      : %X\n",CIDReg.PSN);
    Print (L" Product revision           : %X\n",CIDReg.PRV);
    Print (L" Product name               : %c%c%c%c%c%c\n",
								CIDReg.PNM[0],
								CIDReg.PNM[1],
								CIDReg.PNM[2],
								CIDReg.PNM[3],
								CIDReg.PNM[4],
								CIDReg.PNM[5]);
    Print (L" Manufacturer ID            : %X\n",CIDReg.MID);

Exit:
	return EFI_SUCCESS;
}

在kabyLake HDK 上运行结果:

完整代码下载,其中还有代码生成的EFI程序,是 X64的。
getemmc

本文使用的头文件都是来自新版的 EDK2(比 UDK2015要新一些,我觉得UDK2017有可能会正式加入吧)【参考2】,有兴趣的读者可以自行查阅。
最后,既然有了CID,那么还可以读取一些关于 eMMC的其他信息,比如容量。请读者自己尝试完成。
最后的最后,推荐 Lenovo 出品的一款擦除 eMMC的工具,在 Shell 下运行,可以很快擦掉全部内容(应该使用 eMMC 的 Command 直接Erase的,所以能够达到很快的速度)。
gufd01ww

参考:
1. http://www.jedec.org/standards-documents/results/jesd84-b51 JESD84-A44.pdf
2. https://github.com/tianocore/edk2
3. http://support.lenovo.com/us/en/downloads/ds100934

Step to UEFI (103)Protocol 的私有数据

阅读《UEFI原理与编程》,第八章,开发UEFI服务。其中提到了 Protocol的私有数据。
之前我们介绍过 EFI_LOADED_IMAGE_PROTOCOL,在【参考1】的程序中,就有涉及到LOADED_IMAGE_PRIVATE_DATA,简单的说,定义的 PROTOCOL是这个结构体的一部分,就能够找到整个LOADED_IMAGE_PRIVATE_DATA的结构体,从而获得一些额外的信息。
总结一下,这样的私有数据是这样定义的:

#define PROTOCOLNAME_PRIVATE_DATA_SIGNATURE   SIGNATURE_32('p','r','t','9')
typedef struct {
  UINTN     Signature;
  UINTN	    Var1;
  PROTOCOLNAME _PROTOCOL   PROTOCOLNAME;
} PROTOCOLNAME_PRIVATE_DATA;

#define PROTOCOLNAME _PRIVATE_DATA_FROM_THIS(a) \
     CR(a, PROTOCOLNAME_PRIVATE_DATA, PROTOCOLNAME, PROTOCOLNAME _PRIVATE_DATA_SIGNATURE)



在初始化的时候,要创建一个实际的PROTOCOLNAME_PRIVATE_DATA,然后初始化需要的变量,最后像其他的Protocol安装一样,将PROTOCOLNAME_PRIVATE_DATA. PROTOCOLNAME 安装到合适的Handle上即可。
编写代码测试一下,基于之前我们写的 PrintDriver 代码,先修改 Print9.h。加入了下面的定义:

#define PRINT9_PRIVATE_DATA_SIGNATURE   SIGNATURE_32('p','r','t','9')

typedef struct {
  UINTN     Signature;
  UINTN		Var1;
  /// loaded PROTOCOLNAME
  EFI_PRINT9_PROTOCOL   PRINT9;
} EFI_PRINT9_PRIVATE_DATA;

#define EFI_PRINT9_PRIVATE_DATA_FROM_THIS(a) \
          CR(a, EFI_PRINT9_PRIVATE_DATA, PRINT9, PRINT9_PRIVATE_DATA_SIGNATURE)



之后修改print.c。 这个 driver实现的功能很简单,每次调用UnicodeSPrint 函数的时候,会自动显示 EFI_PRINT9_PRIVATE_DATA 中的 Var1,并且增加1.

#include <PiDxe.h>
#include  <Library/UefiLib.h>
#include "Print9.h"
#include <Library/PrintLib.h>
#include <Library/UefiBootServicesTableLib.h>
#include <Library/DebugLib.h>
#include <Library/UefiDriverEntryPoint.h>
#include <Library/MemoryAllocationLib.h>
EFI_PRINT9_PRIVATE_DATA  *Image;
EFI_HANDLE  mPrintThunkHandle = NULL;
extern EFI_SYSTEM_TABLE			 *gST;

//Copied from \MdeModulePkg\Library\DxePrintLibPrint2Protocol\PrintLib.c
UINTN
EFIAPI
MyUnicodeSPrint (
  OUT CHAR16        *StartOfBuffer,
  IN  UINTN         BufferSize,
  IN  CONST CHAR16  *FormatString,
  ...
  )
{
  VA_LIST Marker;
  UINTN   NumberOfPrinted=1;
  CHAR16  *Buffer=L"12345678";

  VA_START (Marker, FormatString);
  //NumberOfPrinted = UnicodeVSPrint (StartOfBuffer, BufferSize, FormatString, Marker);
  VA_END (Marker);

  UnicodeSPrint(Buffer,8,L"%d",Image->Var1);
  gST->ConOut->OutputString(gST->ConOut,Buffer);
  Image->Var1++;
  return NumberOfPrinted;
}

/**
  The user Entry Point for Print module.

  This is the entry point for Print DXE Driver. It installs the Print2 Protocol.

  @param[in] ImageHandle    The firmware allocated handle for the EFI image.
  @param[in] SystemTable    A pointer to the EFI System Table.

  @retval EFI_SUCCESS       The entry point is executed successfully.
  @retval Others            Some error occurs when executing this entry point.

**/
EFI_STATUS
EFIAPI
PrintEntryPoint (
  IN EFI_HANDLE           ImageHandle,
  IN EFI_SYSTEM_TABLE     *SystemTable
  )
{
	EFI_STATUS  Status=EFI_SUCCESS;

	//
	// Allocate a new image structure
	//
	Image = AllocateZeroPool (sizeof(EFI_PRINT9_PRIVATE_DATA));
	if (Image == NULL) {
		Status = EFI_OUT_OF_RESOURCES;
		goto Done;
	}

    Image->Signature         = PRINT9_PRIVATE_DATA_SIGNATURE;

	Image->PRINT9.UnicodeBSPrint=UnicodeBSPrint;
	Image->PRINT9.UnicodeSPrint=MyUnicodeSPrint;
  	Image->PRINT9.UnicodeBSPrintAsciiFormat=UnicodeBSPrintAsciiFormat;
  	Image->PRINT9.UnicodeSPrintAsciiFormat=UnicodeSPrintAsciiFormat;
  	Image->PRINT9.UnicodeValueToString=UnicodeValueToString;
  	Image->PRINT9.AsciiBSPrint=AsciiBSPrint;
  	Image->PRINT9.AsciiSPrint=AsciiSPrint;
  	Image->PRINT9.AsciiBSPrintUnicodeFormat=AsciiBSPrintUnicodeFormat;
  	Image->PRINT9.AsciiSPrintUnicodeFormat=AsciiSPrintUnicodeFormat;
  	Image->PRINT9.AsciiValueToString=AsciiValueToString;

	Status = gBS->InstallMultipleProtocolInterfaces (
                  &mPrintThunkHandle,
                  &gEfiPrint9ProtocolGuid,
				  &Image->PRINT9,
                  NULL
                  );
    ASSERT_EFI_ERROR (Status);

Done:

  return Status;
}



测试这个 Protocol 使用的还是之前的 pdt.efi,运行结果如下:

stu103

完整的代码下载

printdriver3

参考:
1. Step to UEFI (48) —– 被加载程序的ENTRYPOINT

Step to UEFI (102)Application 释放Driver

Windows下是不允许应用程序直接访问硬件的,必须通过驱动。类似 RW Everything这样的需要访问硬件的工具实际上是自带驱动的,当运行应用程序的时候会自动把驱动释放出去,然后通过加载驱动的方式再进行硬件的访问的。本文就介绍一下,如何在UEFI 中实现同样的功能。
我们有之前做出来的PrintDriver,用一个 Application 在编译期将它包进去,然后运行期释放到硬盘上,然后Load之,再按照Protocol的方式调用。
特别注意的地方是:我将之前的 PrintDriver.efi 用工具转换为C的字节定义,放在文件头中。用 Const 定义,保证它编译后会处于 .rdata段中。

代码如下:

#include  <Uefi.h>
#include  <Library/UefiLib.h>
#include  <Library/ShellCEntryLib.h>
#include  <Library/ShellLib.h>

#include "Print9.h"

EFI_GUID gEfiPrint9ProtocolGuid =
		{ 0xf05976ef, 0x83f1, 0x4f3d,
			{ 0x86, 0x19, 0xf7, 0x59,
				0x5d, 0x41, 0xe5, 0x61 } };


extern EFI_BOOT_SERVICES         *gBS;
extern EFI_SYSTEM_TABLE			 *gST;
extern EFI_RUNTIME_SERVICES 	 *gRT;

extern EFI_HANDLE 					 gImageHandle;

const CHAR8 MyDriver[] ={
#include	"Mydriver.h"
};

int
EFIAPI
main (
  IN int Argc,
  IN CHAR16 **Argv
  )
{
	EFI_PRINT9_PROTOCOL	*Print9Protocol;
	CHAR16			  *Buffer=L"12345678";
	RETURN_STATUS     Status;
	EFI_FILE_HANDLE   FileHandle;
	UINTN			  FileSize=sizeof(MyDriver);
	EFI_HANDLE        *HandleBuffer=(EFI_HANDLE)&MyDriver;
	CHAR16	  		  *CommandLine=L"load MyDriver.efi";
	EFI_STATUS  	  CmdStat;

    Print(L"Length of driver = %d \n",sizeof(MyDriver));

	//Create a new file
	Status = ShellOpenFileByName(L"MyDriver.efi",
                               (SHELL_FILE_HANDLE *)&FileHandle,
                               EFI_FILE_MODE_READ |
							   EFI_FILE_MODE_WRITE|
							   EFI_FILE_MODE_CREATE,
							   0);
	if(Status != RETURN_SUCCESS) {
			Print(L"CreatFile failed [%r]!\n",Status);
			return EFI_SUCCESS;
      }

	Status = ShellWriteFile(FileHandle,
			&FileSize,
			HandleBuffer
			);
	if(Status != RETURN_SUCCESS) {
			Print(L"Writefile failed [%r]!\n",Status);
			return EFI_SUCCESS;
      }
    Print(L"Driver has been released to the disk!\n");

	//Close the source file
	ShellCloseFile(&FileHandle);

    Status = ShellExecute( &gImageHandle, CommandLine, FALSE, NULL, &CmdStat);
	if(Status != RETURN_SUCCESS) {
			Print(L"Driver load error!\n",Status);
			return EFI_SUCCESS;
      }

	// Search for the Print9 Protocol
    //
    Status = gBS->LocateProtocol(
      &gEfiPrint9ProtocolGuid,
      NULL,
      (VOID **)&Print9Protocol
     );
    if (EFI_ERROR(Status)) {
      Print9Protocol = NULL;
	  Print(L"Can't find Print9Protocol.\n");
	  return EFI_SUCCESS;
     }
	Print(L"Find Print9Protocol.\n");
	Print9Protocol->UnicodeSPrint(Buffer,8,L"%d",200);
	Print(L"%s\n",Buffer);

	return EFI_SUCCESS;
}

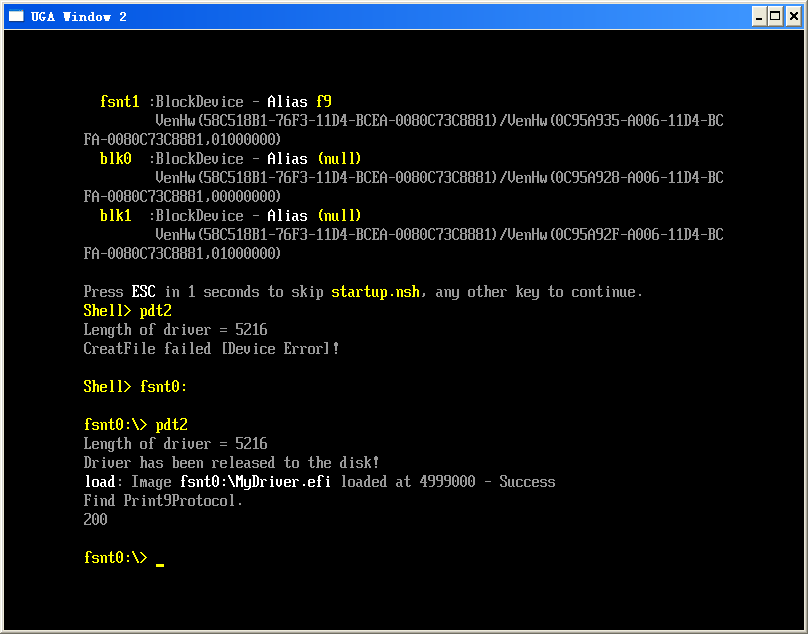

运行结果:
stu102

第一次加载失败的原因是因为当时处于 shell 下面,没有盘符,这样无法正常释放文件。第二次,在fsnt0: 下运行,驱动正常释放,可能够正常加载。所以取得了期望的结果。
最后提一下,PE格式段的问题。打开一个代码,比如之前测试驱动的Application PDT.EFI,查看编译期生成的 pdt.map :
Preferred load address is 00000000

Start Length Name Class
0001:00000000 000045e5H .text CODE
0002:00000000 0000186eH .rdata DATA
0002:00001870 0000006bH .rdata$debug DATA
0003:00000000 00000350H .data DATA
0003:00000360 00002850H .bss DATA

这些段的含义如下【参考1】:
.text 可执行代码段
数据段.bss、.rdata、.data
.rdata段表示只读的数据,比如字符串文字量、常量和调试目录信息。
.bss段表示应用程序的未初始化数据,包括所有函数或源模块中声明为static的变量。
.data段存储所有其它变量(除了出现在栈上的自动变量)。基本上,这些是应用程序或模块的全局变量。
所以我们希望,定义的数据段出现在 rdata 中,再查看我们的 pdt2.map,其中的 rdata段因为包括了我们定义的 Driver长度明显变大了。
Preferred load address is 00000000

Start Length Name Class
0001:00000000 000046c5H .text CODE
0002:00000000 00002e16H .rdata DATA
0002:00002e18 0000006eH .rdata$debug DATA
0003:00000000 00000350H .data DATA
0003:00000360 00002850H .bss DATA

完整的代码下载:
pdt2

参考:
1. http://blog.csdn.net/feidegengao/article/details/16966357 PE文件格式详解(下)

Step to UEFI (101)Application 驻留内存

前面一篇文章提到“提供服务的代码需要常驻内存,一般的 Application 是不会常驻内存的,而驱动直接可以常驻内存”。普通的Application 不能常驻内存,但是可以做个特殊的Application 来完成这个功能,之前的文章【参考1】我们尝试过写一个能够一直在 Shell 右上角显示当前时间的程序。结合前面的Protocol安装的驱动代码,我们做一个安装Protocol的Application。

#include  <Uefi.h>
#include  <Library/UefiLib.h>
#include  <Library/ShellCEntryLib.h>

#include  <stdio.h>
#include  <stdlib.h>
#include  <wchar.h>
#include  <time.h>
#include <Protocol/EfiShell.h>
#include <Library/ShellLib.h>
#include <Library/PrintLib.h>
#include <Protocol/SimpleFileSystem.h>
#include <Protocol/BlockIo.h>
#include <Library/DevicePathLib.h>
#include <Library/HandleParsingLib.h>
#include <Library/SortLib.h>
#include <Library/MemoryAllocationLib.h>
#include <Library/BaseMemoryLib.h>
#include <Library/DebugLib.h>
#include <Protocol/LoadedImage.h>

#include "Print9.h"

extern EFI_BOOT_SERVICES         *gBS;
extern EFI_SYSTEM_TABLE			 *gST;
extern EFI_RUNTIME_SERVICES 	 *gRT;

extern EFI_SHELL_ENVIRONMENT2    *mEfiShellEnvironment2;
extern EFI_HANDLE				 gImageHandle;

typedef struct {
  UINTN                       Signature;
  /// Image handle
  EFI_HANDLE                  Handle;
  /// Image type
  UINTN                       Type;
  /// If entrypoint has been called
  BOOLEAN                     Started;
  /// The image's entry point
  EFI_IMAGE_ENTRY_POINT       EntryPoint;
  /// loaded image protocol
  EFI_LOADED_IMAGE_PROTOCOL   Info;
} LOADED_IMAGE_PRIVATE_DATA_TEMP;

EFI_GUID gEfiPrint9ProtocolGuid=
	{ 0xf05976ef, 0x83f1, 0x4f3d,
	{ 0x86, 0x19, 0xf7, 0x59, 0x5d, 0x41, 0xe5, 0x61 } };

#define _CR(Record, TYPE, Field)  ((TYPE *) ((CHAR8 *) (Record) - (CHAR8 *) &(((TYPE *) 0)->Field)))

#define LOADED_IMAGE_PRIVATE_DATA_FROM_THIS(a) \
          _CR(a, LOADED_IMAGE_PRIVATE_DATA_TEMP, Info)

CONST EFI_PRINT9_PROTOCOL mPrint9Protocol = {
  UnicodeBSPrint,
  UnicodeSPrint,
  UnicodeBSPrintAsciiFormat,
  UnicodeSPrintAsciiFormat,
  UnicodeValueToString,
  AsciiBSPrint,
  AsciiSPrint,
  AsciiBSPrintUnicodeFormat,
  AsciiSPrintUnicodeFormat,
  AsciiValueToString
};

EFI_LOADED_IMAGE_PROTOCOL          *ImageInfo = NULL;

typedef void (*Fun)();

void function()
{
  EFI_STATUS  Status;

  Status = gBS->InstallMultipleProtocolInterfaces (
                  &gImageHandle,
                  &gEfiPrint9ProtocolGuid,
				  &mPrint9Protocol,
                  NULL
                  );
  ASSERT_EFI_ERROR (Status);
}


int
EFIAPI
main (
  IN int Argc,
  IN char **Argv
  )
{
  EFI_STATUS                         Status = EFI_SUCCESS;
  EFI_HANDLE                         Handle = 0;
  EFI_GUID                           gEfiLoadedImageProtocolGuid =
                                     { 0x5B1B31A1, 0x9562, 0x11D2, { 0x8E, 0x3F, 0x00, 0xA0, 0xC9, 0x69, 0x72, 0x3B }};
  LOADED_IMAGE_PRIVATE_DATA_TEMP      *private = NULL;
  Fun                                fun;
  UINTN                              FunOffset;
  UINTN                              FunAddr;

  Status = gBS->HandleProtocol (gImageHandle, &gEfiLoadedImageProtocolGuid, &ImageInfo);
  // function offset in the old image
  FunOffset = (UINTN)function - (UINTN)ImageInfo->ImageBase;

  // load the image in memory again
  Status = gBS->LoadImage(FALSE, gImageHandle, NULL, ImageInfo->ImageBase, (UINTN)ImageInfo->ImageSize, &Handle);

  // get the newer imageinfo
  Status = gBS->HandleProtocol (Handle, &gEfiLoadedImageProtocolGuid, &ImageInfo);

  private = LOADED_IMAGE_PRIVATE_DATA_FROM_THIS(ImageInfo);
  FunAddr = (UINTN)FunOffset + (UINTN)ImageInfo->ImageBase;

  fun = (Fun)((UINTN)FunOffset + (UINTN)ImageInfo->ImageBase);
  // called the newer function in new image,the new image will be always in memory because it will not be free
  fun();
  return EFI_SUCCESS;
}



运行结果,和使用Driver方式的没有差别。
stu101

完整的代码下载:
appprotocol

参考:
1. http://www.lab-z.com/49str/ Step to UEFI (49) —– 内存驻留程序

Step to UEFI (100)InstallProtocolInterface

前面介绍了很多“消费”Protocol的代码,这次试试自己生产一个 Protocol 试试。根据我的理解,产生的 protocol 可以挂接在任何的 Handle 上(DH 命令看到的都可以),提供服务的代码需要常驻内存,一般的 Application 是不会常驻内存的,驱动直接可以常驻内存。于是,我们实验编写一个驱动程序,使用 Load 来加载驱动产生自定义的 Protocol ,挂接在自身Image 的Handle上。
需要使用的主要服务是 InstallProtocolInterface,我们先看看它的定义和输入参数:

typedef
EFI_STATUS
(EFIAPI *EFI_INSTALL_PROTOCOL_INTERFACE)(
  IN OUT EFI_HANDLE               *Handle,          //安装到哪个Handle上
  IN     EFI_GUID                 *Protocol,               //安装的Protocol 的名字
  IN     EFI_INTERFACE_TYPE       InterfaceType,  ,  //目前只有一种类型:EFI_NATIVE_INTERFACE
  IN     VOID                     *Interface                  //Protocol的实例
  );



实际上,代码中更加常见的是InstallMultipleProtocolInterfaces, 这是因为 “ Installs a protocol interface on a device handle. If the handle does not exist, it is created and added to the list of handles in the system. InstallMultipleProtocolInterfaces() performs more error checking than InstallProtocolInterface(), so it is recommended that InstallMultipleProtocolInterfaces() be used in place of InstallProtocolInterface()” 因此,我们代码中会使用 InstallMultipleProtocolInterfaces 而不是前面提到的 InstallProtocolInterface。

/**
  Installs one or more protocol interfaces into the boot services environment.

  @param[in, out]  Handle       The pointer to a handle to install the new protocol interfaces on,
                                or a pointer to NULL if a new handle is to be allocated.
  @param  ...                   A variable argument list containing pairs of protocol GUIDs and protocol
                                interfaces.

  @retval EFI_SUCCESS           All the protocol interface was installed.
  @retval EFI_OUT_OF_RESOURCES  There was not enough memory in pool to install all the protocols.
  @retval EFI_ALREADY_STARTED   A Device Path Protocol instance was passed in that is already present in
                                the handle database.
  @retval EFI_INVALID_PARAMETER Handle is NULL.
  @retval EFI_INVALID_PARAMETER Protocol is already installed on the handle specified by Handle.

**/
typedef
EFI_STATUS
(EFIAPI *EFI_INSTALL_MULTIPLE_PROTOCOL_INTERFACES)(
  IN OUT EFI_HANDLE           *Handle,
  ...
  );



InstallMultipleProtocolInterfaces 服务支持一次性安装多个Protocol,所以接收的变量是可变数量的,看起来让人有眼晕的感觉。最简单的方法是照葫芦画瓢,我们在UDK2014的代码中找一下我们的“葫芦”。在MdeModulePkg中,有一个 PrintDxe,它会向系统中注册名称为Print2Protocol 的 Protocol。

先分析一下他的代码结构。主要文件有3个:

1. \MdeModulePkg\Universal\PrintDxe\PrintDxe.inf 可以看做是工程文件,特别注意,其中有用到gEfiPrint2ProtocolGuid 在 MdeModulePkg.dec 中有定义:

  ## Print protocol defines basic print functions to print the format unicode and ascii string.
  # Include/Protocol/Print2.h
  gEfiPrint2ProtocolGuid          = { 0xf05976ef, 0x83f1, 0x4f3d, { 0x86, 0x19, 0xf7, 0x59, 0x5d, 0x41, 0xe5, 0x38 } }



2 \MdeModulePkg\Universal\PrintDxe\Print.c 其中有这个 Protocol的实例,还有入口函数PrintEntryPoint。其中使用了InstallMultipleProtocolInterfaces 将mPrint2Protocol 安装到了mPrintThunkHandle(==0) 上面。

3. \MdeModulePkg\Include\Protocol\Print2.h 定义了提供的 Protocol 的结构。

struct _EFI_PRINT2_PROTOCOL {
  UNICODE_BS_PRINT                     UnicodeBSPrint;
  UNICODE_S_PRINT                      UnicodeSPrint;
  UNICODE_BS_PRINT_ASCII_FORMAT        UnicodeBSPrintAsciiFormat;
  UNICODE_S_PRINT_ASCII_FORMAT         UnicodeSPrintAsciiFormat;
  UNICODE_VALUE_TO_STRING              UnicodeValueToString;
  ASCII_BS_PRINT                       AsciiBSPrint;
  ASCII_S_PRINT                        AsciiSPrint;
  ASCII_BS_PRINT_UNICODE_FORMAT        AsciiBSPrintUnicodeFormat;
  ASCII_S_PRINT_UNICODE_FORMAT         AsciiSPrintUnicodeFormat;
  ASCII_VALUE_TO_STRING                AsciiValueToString;
};



更多的介绍可以在【参考1】中看到。
之后就可以尝试进行编译,需要在 MdeModulePkg.dec 中声明一次 gEfiPrint9ProtocolGuid ,注意我修改了GUID保证不会和原来的发生冲突。再在MdeModulePkg.dsc 中加入 PrintDxe.inf 加入的位置和我们之前编译过的GOP旋转驱动还有截图的驱动位置一样。

编译之后的结果可以直接在 NT32 模拟器下试验:
st1001
加载之后可以发现用 DH 命令列出当前的 Handle会多了一个image(如果我们再Load一次,那么还会多出来一个Image,我们的代码不完善,没有自动查找确认当前是否已经执行过一次的功能)
stu1002

我们编写一个简单的Application来调用这个 Protocol 测试:

#include  <Uefi.h>
#include  <Library/UefiLib.h>
#include  <Library/ShellCEntryLib.h>

#include "Print9.h"

EFI_GUID gEfiPrint9ProtocolGuid =
		{ 0xf05976ef, 0x83f1, 0x4f3d,
			{ 0x86, 0x19, 0xf7, 0x59,
				0x5d, 0x41, 0xe5, 0x61 } };


extern EFI_BOOT_SERVICES         *gBS;
extern EFI_SYSTEM_TABLE			 *gST;
extern EFI_RUNTIME_SERVICES 	 *gRT;

int
EFIAPI
main (
  IN int Argc,
  IN CHAR16 **Argv
  )
{
	EFI_PRINT9_PROTOCOL		*Print9Protocol;
	EFI_STATUS				Status;
	CHAR16					*Buffer=L"12345678";
	// Search for the Print9 Protocol
    //
    Status = gBS->LocateProtocol(
      &gEfiPrint9ProtocolGuid,
      NULL,
      (VOID **)&Print9Protocol
     );
    if (EFI_ERROR(Status)) {
      Print9Protocol = NULL;
	  Print(L"Can't find Print9Protocol.\n");
	  return EFI_SUCCESS;
     }
	Print(L"Find Print9Protocol.\n");
	Print9Protocol->UnicodeSPrint(Buffer,8,L"%d",200);
	Print(L"%s\n",Buffer);

	return EFI_SUCCESS;
}



运行结果:
stu1003
首先运行的时候找不到对应的 Protocol,需要Load一次,再次运行就可以正常运行了。
本文提到的完整代码下载:

pdt

printdriver

参考:
1. http://feishare.com/attachments/065_EFI%20Howto,%20%20%20%E6%B3%A8%E5%86%8C%EF%BC%8C%E5%8F%91%E5%B8%83%EF%BC%8C%E4%BD%BF%E7%94%A8%E8%87%AA%E5%AE%9A%E4%B9%89%E7%9A%84protocol.pdf EFI Howto ,注册,发布,使用自定义的protocol
